evermagnets grid Magnets are designed for products purity for free flowingmaterials such as carbon black,drugs,chemicals,cosmetics,food products,plastics,grains,spices,sugars,honey,salt,and minerals.These units are easily installed in any hopper or floor opening,chute or duct.The Magnetic Grids protect your processing machinery against dangerous tramp iron.Magnetic filter bars fixed onto a stainless steel frameworks,when anythings containing iron substances passes through the framework,Iron particles are attracted to the bar magnets by magnetic fields.As a result,your equipment and facilities will be safe and sound,and your products will be safe for consumption.
| Round Version |
|
|
|
|
|
|
Model |
Diameter |
Number for bar |
Model |
Diameter |
Number for bar |
|
mm |
mm |
|
Upgrate-R-100 |
100 |
2 |
Upgrate-R-400 |
400 |
8 |
|
Upgrate-R-150 |
150 |
3 |
Upgrate-R-450 |
450 |
9 |
|
Upgrate-R-200 |
200 |
4 |
Upgrate-R-500 |
500 |
10 |
|
Upgrate-R-250 |
250 |
5 |
Upgrate-R-550 |
550 |
11 |
|
Upgrate-R-300 |
300 |
6 |
Upgrate-R-600 |
600 |
12 |
|
Upgrate-R-350 |
350 |
7 |
Upgrate-R-800 |
800 |
16 |
| OEM orders & Customer Designed Application ae also welcomed |
|
|
|
|
|
|
| Square Version |
|
|
|
|
|
|
Model |
Diameter |
Number for bar |
Model |
Diameter |
Number for bar |
|
mm |
mm |
|
Upgrate-S-100 |
100 |
2 |
Upgrate-S-400 |
400 |
8 |
|
Upgrate-S-150 |
150 |
3 |
Upgrate-S-450 |
450 |
9 |
|
Upgrate-S-200 |
200 |
4 |
Upgrate-S-500 |
500 |
10 |
|
Upgrate-S-250 |
250 |
5 |
Upgrate-S-550 |
550 |
11 |
|
Upgrate-S-300 |
300 |
6 |
Upgrate-S-600 |
600 |
12 |
|
Upgrate-S-350 |
350 |
7 |
Upgrate-S-800 |
800 |
16 |
|
OEM orders & Customer Designed Application ae also welcomed
Diemsion,Constuction and Feature:
1.Diameter of magnetic filter bar is 1".
2.Optional tube spacing.

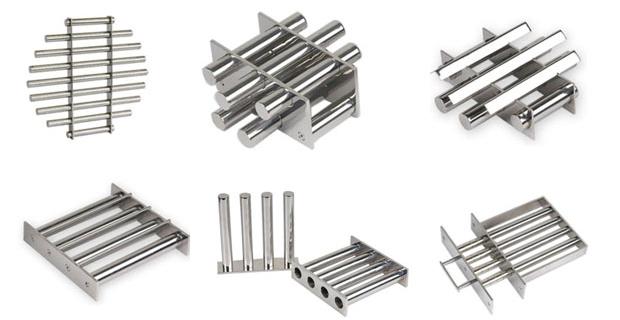

3.We have Square type and Round type grate magnets.Two layers,three layers or more can be provided on request.
4.The distance between to magnetic bar is 1",1/2"inch also cab be provided on request.
5.Constructed of SS304 & SS3166 casing tube and casing frame,it is equipped with high density Ceramic 8 magnets and high-energy Rare-Earth magnets to suit your application.
6.90degree angle baffles and Dia5mm,round SS bar can be attached to the attached to the grates on request.
7.Easy-clean type can be provided on request.
8.All the magnetic bars are waterproof.
9.Condition:Well polished.
|
|
