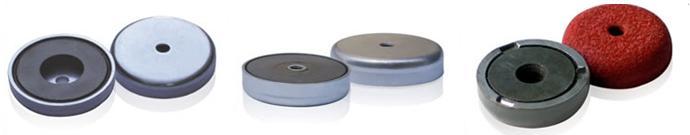

| Your Location: Home >> Products List >> Mounting Ferrite Pot |
| Model |
shell |

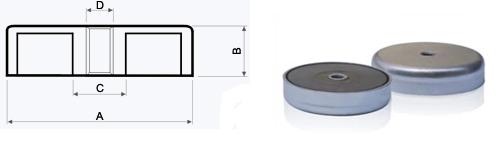

Dimension(mm) |
Magnet |
Coating |
Pull Force(N) |
| A |
B |
C |
D |
| PFP-25 |
Fe37 |
25 |
7 |
5.2 |
M4 |
Ferrite |
Zn |
36 |
| PFP-32 |
Fe37 |
32 |
7 |
5.2 |
M4 |
Ferrite |
Zn |
75 |
| PFP-32A |
Fe37 |
32 |
7 |
9 |
��5.2 |
Ferrite |
Cr |
75 |
| PFP-40 |
Fe37 |
40 |
8 |
5.2 |
M4 |
Ferrite |
Zn |
90 |
| PFP-40A |
Fe37 |
40 |
8 |
10 |
M4 |
Ferrite |
Zn |
100 |
| PFP-40B |
Fe37 |
40 |
8 |
9.5 |
M5 |
Ferrite |
Zn |
90 |
| PFP-50 |
Fe37 |
50 |
10 |
12 |
M6 |
Ferrite |
Zn |
170 |
| PFP-50A |
Fe37 |
50 |
10 |
12 |
M8 |
Ferrite |
Zn |
170 |
| PFP-50B |
Fe37 |
50 |
10 |
18 |
M8 |
Ferrite |
Cr |
170 |
| PFP-50C |
Fe37 |
50 |
10 |
19 |
��6.2 |
Ferrite |
Cr |
170 |
| PFP-50D |
Fe37 |
50 |
9.5 |
14 |
��6.2 |
Ferrite |
Zn |
170 |
| PFP-50E |
Fe37 |
50 |
10 |
14 |
M6 |
Ferrite |
ZN |
180 |
| PFP-63 |
Fe37 |
63 |
14 |
13 |
M8 |
Ferrite |
Zn |
350 |
| PFP-63A |
Fe37 |
63 |
14 |
20 |
M8 |
Ferrite |
Cr |
350 |
| PFP-63B |
Fe37 |
63 |
14 |
20.5 |
6.5 |
Ferrite |
Zn |
290 |
| PFP-63C |
Fe37 |
63 |
13 |
20 |
M10 |
Ferrite |
Zn |
�� |
| PFP-63D |
Fe37 |
63 |
14 |
12 |
M8 |
Ferrite |
Zn |
280 |
| PFP-76 |
Fe37 |
76 |
11.6 |
25 |
��6.2 |
Ferrite |
Cr |
400 |
| PFP-80 |
Fe37 |
80 |
18 |
14.5 |
M8 |
Ferrite |
Zn |
550 |
| PFP-80A |
Fe37 |
80 |
18 |
14.5 |
M10 |
Ferrite |
Zn |
550 |
| PFP-80B |
Fe37 |
80 |
20 |
14.5 |
M8 |
Ferrite |
Zn |
550 |
| PFP-80C |
Fe37 |
80 |
20 |
14.5 |
M10 |
Ferrite |
Zn |
550 |
| PFP-80D |
Fe37 |
80 |
20 |
27 |
M6 |
Ferrite |
Zn |
550 |
| PFP-80E |
Fe37 |
80 |
20 |
27 |
M10 |
Ferrite |
Zn |
400 |
| PFP-80G |
Fe37 |
80 |
18 |
27 |
M10 |
Ferrite |
Zn |
540 |
|
|
