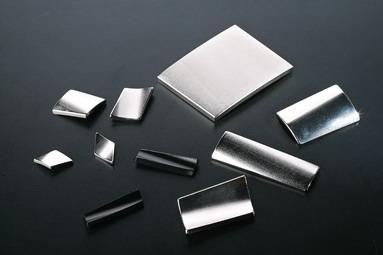

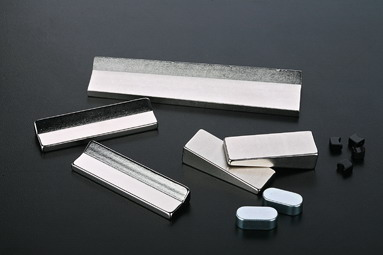

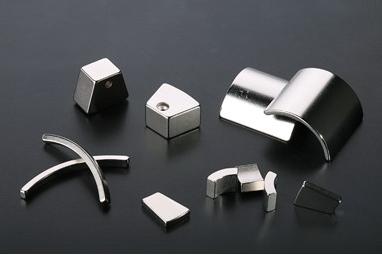

Irregular Sintered NdFeB Description
Irregular Magnets is one popular shape of Rare earth magnets and perment magnets.
It is always manufactured via Wire-Cutting,Slicing,Drilling, and grinding etc .Wire-cutting is the main manufacture process.Due to complicated manufacture process,irregular magnets are expensive than other magnets.
Irregular magnets have the following important factors such as ,Outer Diameter,Inner Diameter,Thickness  ,Length,etc
Material Grade of NdFeB magnets:
Magnet N-( N35, N38, N40, N42, N45, N48, N50,N52),
Magnet M-(35M, 38M, 40M, 42M, 45M, 48M),
Magnet H-(35H, 38H, 40H, 42H, 45H),
Magnet SH-(30SH, 33SH, 35SH, 38SH, 40SH, 42SH,45SH),
Magnet UH-( 28UH, 30UH, 33UH, 35UH, 38UH),
Magnet EH-(28EH, 30EH, 30EH, 33EH, 35EH)

1) Application of NdFeB magnet: Toys, package, Printer, Switchboard, Phone, voice coil motors (VCM's) in hard disk drives, high performance motors, brushless DC motors, magnetic separation, magnetic resonance imaging, sensors, loudspeakers etc.
2) The coating of NdFeB magnets can be Zn, Ni, Ni-Cu-Ni, Epoxy, CR3+ZN, NI+AG, NI+AU.
3) Our factory can also manufacture various sizes of NdFeB magnet, according to the customer's specification

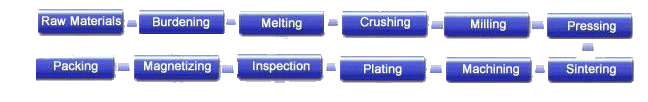

4)Production Process:


5) Machining Process:
Grinding block or cylinder or disc or rings--Wire cutting--Plating
