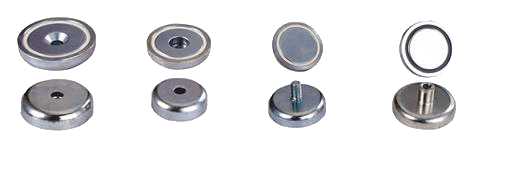

Pot magnet: iron, steel with sintered NdFeB ,plastic injected around. Available in coating of Zn or NicuNi . When using pot magnet on a steel surface, you can attach and easily remove heavy parts These magnets can be attached to any steel surface with greater holding strength than normal ferrite magnets Magnet can be taken away from the steel pot easily when needed Round base permanent magnets/POT magnets are constructed of powerful magnets encased in plated steel bases. Because of their exceptional economy high holding power and compact designs, these magnetic bases are perfect for a number of applications. Can be used for positioning, holding or handing inspection equipment, indicator gauges, lamps, antennas and more. It is recommended that the contact surfaces of the piece of work should be kept free of contamination enable to guarantee reliable operation
PMYP-A,Round Attraction Magnet,Model A
| Model |
DØ |
D1Ø |
D2Ø |
H |
Attraction (Kg) |
Deadweight (g) |
| PMyp-A16 |
16 |
3.5 |
6.5 |
5 |
5 |
7 |
| PMyp-A20 |
20 |
4.5 |
8.6 |
7 |
6 |
13 |
| PMyp-A25 |
25 |
5.5 |
10.4 |
8 |
14 |
23 |
| PMyp-A32 |
32 |
5.5 |
10.4 |
8 |
25 |
39 |
| PMyp-A42 |
42 |
6.5 |
12 |
9 |
37 |
76 |
| PMyp-A48 |
48 |
8.5 |
16 |
11.5 |
68 |
120 |
| PMyp-A60 |
60 |
8.5 |
16 |
15 |
112 |
252 |
| PMyp-A75 |
75 |
10.5 |
19 |
18 |
162 |
488 |
PMYP-B,Round Attraction Magnet,Model B
| Model |
DØ |
D1Ø |
D2Ø |
H |
Attraction (Kg) |
Deadweight (g) |
| PMyp-B16 |
16 |
3.5 |
6.5 |
5 |
4 |
6 |
| PMyp-B20 |
20 |
4.5 |
8 |
7 |
6 |
12 |
| PMyp-B25 |
25 |
5.5 |
9 |
8 |
14 |
23 |
| PMyp-B32 |
32 |
5.5 |
9 |
8 |
23 |
36 |
| PMyp-B42 |
42 |
6.5 |
11 |
9 |
32 |
73 |
| PMyp-B48 |
48 |
8.5 |
15 |
11.5 |
63 |
114 |
| PMyp-B60 |
60 |
8.5 |
15 |
15 |
95 |
240 |
| PMyp-B75 |
75 |
10.5 |
18 |
18 |
155 |
471 |

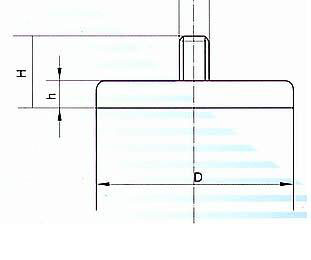

PMYP-C,Round Attraction Magnet,Model C
| Model |
DØ |
D1Ø |
D2Ø |
H |
Attraction (Kg) |
Deadweight (g) |
| PMyp-C10 |
10 |
3 |
12 |
5 |
2.2 |
3.5 |
| PMyp-C12 |
12 |
3 |
13 |
5 |
3.2 |
5 |
| PMyp-C16 |
16 |
4 |
13 |
5 |
5.5 |
7.5 |
| PMyp-C20 |
20 |
4 |
15 |
7 |
9 |
16 |
| PMyp-C25 |
25 |
5 |
17 |
8 |
22 |
30 |
| PMyp-C32 |
32 |
6 |
18 |
8 |
34 |
45 |
| PMyp-C36 |
36 |
8 |
18 |
8 |
41 |
57 |
| PMyp-C42 |
42 |
8 |
20 |
9 |
68 |
84 |
| PMyp-C48 |
48 |
8 |
24 |
11.5 |
81 |
130 |
| PMyp-C60 |
60 |
10 |
30 |
15 |
113 |
254 |

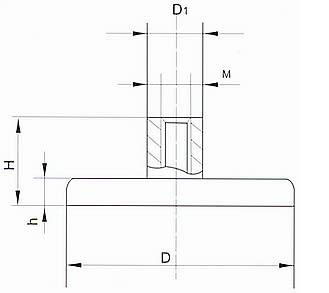

PMYP-D,Round Attraction Magnet,Model D
| Model |
DØ |
D1 |
M |
H |
h |
Attraction (Kg) |
Deadweight (g) |
| PMyp-D10 |
10 |
5.5 |
3 |
12 |
5 |
�� |
�� |
| PMyp-D12 |
12 |
6 |
3 |
13 |
5 |
�� |
�� |
| PMyp-D16 |
16 |
6 |
4 |
13 |
5 |
5.5 |
8 |
| PMyp-D20 |
20 |
8 |
4 |
15 |
7 |
9 |
17 |
| PMyp-D25 |
25 |
10 |
5 |
17 |
8 |
22 |
32 |
| PMyp-D32 |
32 |
10 |
6 |
18 |
8 |
34 |
47 |
| PMyp-D36 |
36 |
10 |
8 |
18 |
8 |
41 |
59 |
| PMyp-D42 |
42 |
12 |
8 |
20 |
9 |
68 |
87 |
| PMyp-D48 |
48 |
12 |
8 |
24 |
11.5 |
81 |
132 |
| PMyp-D60 |
60 |
14 |
10 |
30 |
15 |
113 |
259 |

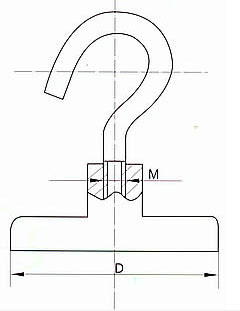

PMYP-E,Round Attraction Magnet,Model E
| Model |
D |
M |
Attraction (Kg) |
Deadweight (g) |
| PMyp-E16 |
16 |
4 |
5.5 |
11 |
| PMyp-E20 |
20 |
4 |
9 |
21 |
| PMyp-E25 |
25 |
4 |
22 |
37 |
| PMyp-E32 |
32 |
4 |
34 |
56 |
| PMyp-E36 |
36 |
4 |
41 |
68 |
| PMyp-E42 |
42 |
4 |
68 |
97 |
| PMyp-E48 |
48 |
5 |
81 |
154 |
| PMyp-E60 |
60 |
5 |
113 |
282 |
| PMyp-E75 |
75 |
6 |
164 |
560 |
|
